High-speed “rotary” nail machines use a continuous rotary forming/cutting system (instead of the stop-and-go plunger in traditional Z94 models). The result is much higher output, tighter tolerances, lower vibration/noise, and a superior surface finish — ideal for large-scale, precision production.
🔹 Key Features
- Ultra-fast output — typically 800–2,000 nails/min (model & nail size dependent).
- Rotary forming technology — reduced vibration, smoother operation, less wear.
- High precision — consistent length, head shape, and point; better finish, fewer rejects.
- Lower noise & longer service life — optimized kinematics and balanced moving parts.
- Stable & clean process — modern lubrication and enclosure options help keep floors clean.
- Easy changeovers — quick tooling swaps for different nail lengths/diameters.
🔹 Typical Specs (range varies by model)
- Nail size: 1–3 inch common; larger models can reach 4–5 inch.
- Diameter range: ~1.6–4.2 mm (small models focus on thin nails; larger handle thicker).
- Speed: 800–2,000 pcs/min (smaller nails run faster).
- Power: ~5–15 kW depending on size/speed.
- Finish quality: Low burrs, uniform heads, clean shanks (ideal for ring/screw shank rolling later).
🔹 Applications
✅ Construction & framing nails (bulk or collated)
✅ Furniture/packaging nails with tight tolerance
✅ Roofing & siding nails (paired with collator)
✅ Any high-volume production where consistency + capacity matter
🔹 Available Models

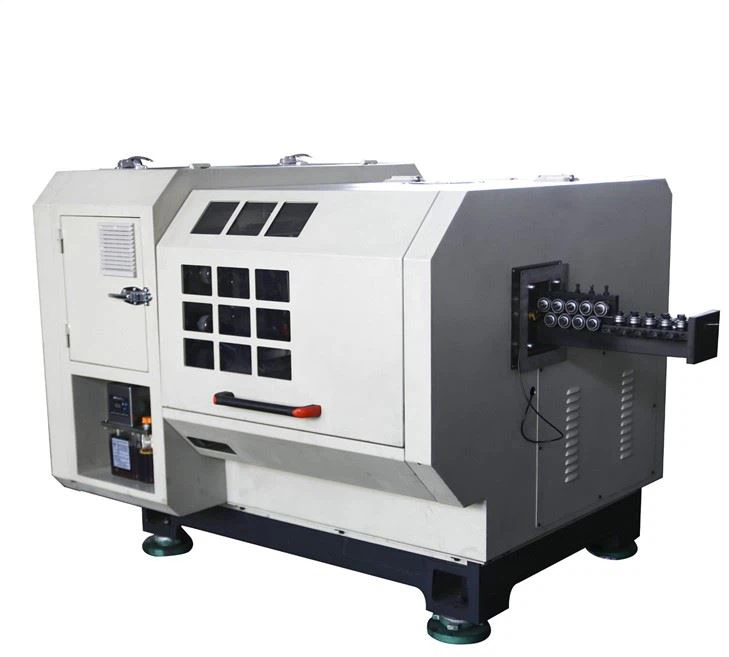

X90 High-Speed Nail Making Machine
The X90 is one of the most popular models in the high-speed rotary nail making machine series. It offers an excellent balance of speed, precision, and flexibility, making it suitable for medium to large-scale nail factories that require consistent quality and efficient output.
🔹 Key Features
- High efficiency: Produces up to 780 nails per minute, significantly faster than traditional models.
- Versatile capacity: Handles a wide range of nails from 32 mm to 115 mm in length and 1.8–4.0 mm in diameter.
- Precision forming: Rotary cutting system ensures smooth shanks, uniform head shapes, and sharp points.
- Durable construction: Heavy-duty frame and precision components ensure long service life.
- Energy optimized: Rated at 7 kW, efficient compared to output capacity.
- Compact footprint: Designed to save workshop space while handling industrial production volumes.
🔹 Technical Specifications
- Nail Diameter Range: 1.8–4.0 mm
- Nail Length Range: 32–115 mm
- Maximum Output: ≤ 780 pcs/min
- Rated Power: 7 kW
- Machine Dimensions:
- 1350 × 1220 × 1050 mm
- 1500 × 800 × 1600 mm (depending on manufacturer configuration)
- Machine Weight: ~2800 kg
🔹 Applications
✅ General construction nails (2–4 inches)
✅ Framing & packaging nails
✅ Wire nails for coil collators (roofing/framing guns)
✅ Medium-size nails with high volume demand
🔹 Advantages Over Traditional Machines
- Faster production rate (up to 2–3x more than Z94 plunger machines).
- Better nail quality with uniform size and smooth surface.
- Reduced noise & vibration thanks to rotary mechanics.
- Lower downtime due to less frequent adjustments and easier maintenance.
X130 High-Speed Nail Making Machine
The X130 is a heavy-duty high-speed rotary nail making machine designed for large-scale industrial production. It is built to handle thicker and longer nails than mid-range models like the X90, while maintaining high precision and consistent output. This makes it ideal for factories producing nails for construction, framing, and heavy-duty applications.
🔹 Key Features
- High productivity: Produces up to 720 nails per minute, suitable for continuous industrial operations.
- Wide nail range: Handles nails from 50 mm to 130 mm in length and 2.4–4.5 mm in diameter, including heavy-duty nails.
- Precision forming: Rotary mechanism ensures smooth shanks, uniform heads, and sharp points with minimal burrs.
- Durable construction: Robust frame and high-quality components support heavy workloads and long service life.
- Power-efficient: Rated at 9 kW, optimized for high-output operation.
- Industrial footprint: Larger than X90 to accommodate bigger nails, yet designed for efficient factory layout.
🔹 Technical Specifications
- Nail Diameter Range: 2.4–4.5 mm
- Nail Length Range: 50–130 mm
- Maximum Output: ≤ 720 pcs/min
- Rated Power: 9 kW
- Machine Dimensions:
- 1550 × 1220 × 1050 mm
- 1500 × 800 × 1600 mm (depending on manufacturer configuration)
- Machine Weight: ~4200 kg
🔹 Applications
✅ Heavy-duty construction nails
✅ Framing and industrial packaging nails
✅ Long nails for scaffolding and woodworking
✅ Any factory needing large nails with high precision
🔹 Advantages Over Smaller High-Speed Models (X90/X50)
Reduced downtime with modern rotary design.
Can produce thicker & longer nails.
Stronger frame and components for continuous heavy workloads.
Maintains high precision at larger nail sizes.
X150 High-Speed Nail Making Machine
The X150 is a heavy-duty, high-capacity rotary nail making machine designed for large-scale industrial nail production. It specializes in producing extra-long and thick nails, making it perfect for construction, scaffolding, and heavy woodworking applications where strong, precise nails are required.
🔹 Key Features
- High productivity: Produces up to 720 nails per minute, supporting continuous industrial production.
- Extra-large nail range: Handles nails from 70 mm to 150 mm in length and 2.5–5.1 mm in diameter, including the thickest nails commonly used in heavy construction.
- Precision forming: Rotary mechanism ensures uniform heads, smooth shanks, and sharp points, even for large nails.
- Robust construction: Reinforced frame and premium components handle heavy workloads and provide long service life.
- Power-efficient: Rated at 14 kW, optimized for high-volume, heavy-duty operation.
- Industrial footprint: Slightly larger dimensions than X130 to accommodate thicker and longer nails efficiently.
🔹 Technical Specifications
- Nail Diameter Range: 2.5–5.1 mm
- Nail Length Range: 70–150 mm
- Maximum Output: ≤ 720 pcs/min
- Rated Power: 14 kW
- Machine Dimensions:
- 1650 × 1250 × 1300 mm
- 1500 × 800 × 1600 mm (depending on manufacturer configuration)
- Machine Weight: ~4300 kg
🔹 Applications
✅ Heavy-duty construction nails
✅ Scaffolding nails and long framing nails
✅ Industrial woodworking and packaging nails
✅ Factories requiring large, strong nails with consistent quality
🔹 Advantages Over Smaller High-Speed Models (X130/X90)
Suitable for factories targeting specialized, high-strength nail production.
Can produce the longest and thickest nails in the high-speed series.
Stronger frame and components for continuous heavy workloads.
Maintains high precision and smooth finish even for large nails.
